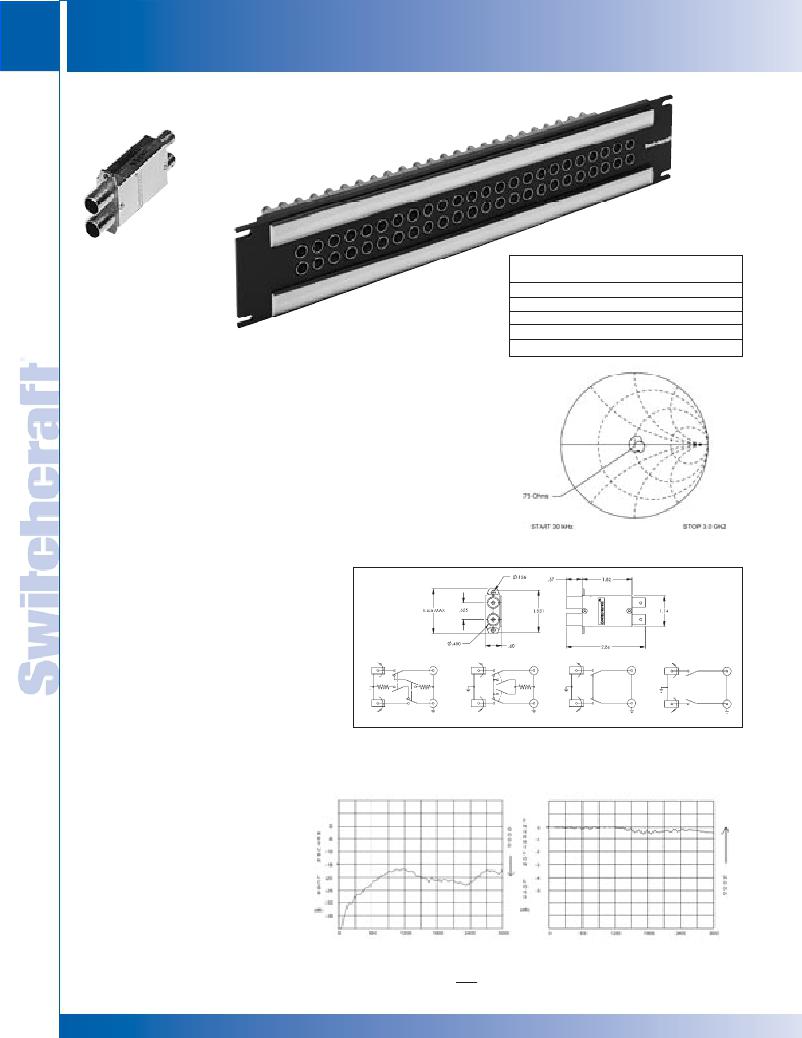

JACKS AND PLUGS
VJ SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
VJ SERIES
VJHD*75TX
See page 193 for Patch panel information.
Ordering–Individual Jacks
Part Number Type Description
VJHD*75TX
HD Terminated
VPP24K3HD75T
VJHD*NTX
VJSD*75TX
VJSD*NTX
HD Non-terminated
SD Terminated
SD Non-terminated
*Add “N” for non-normalled version
FEATURES AND BENEFITS
? HD Series meets SMPTE 292M Specifications
? SD Series has a bandwidth from DC to 1.75GHz
? Jacks feature rugged heavy duty housings
VIDEO JACK SPECIFICATIONS
ELECTRICAL
Rated Bandwidth: 2.4 GHz (HD), 1.75 GHz (SD)
Characteristic Impedance: 75 ohms
Return Loss: Better than –15 dB
Insertion Loss: Better than –.5 dB
Contact Resistance: Less than 20 milliohms
Termination Resistance: 75 W, ±1%
Center Conductor: Accepts .090 pin diameter
MECHANICAL
Mechanical Shock: Per MIL-STD-202,
Method 213, Test condition I
Vibration: Per MIL-STD-202, Method 201
Insertion Force: 12 lbs. maximum
Withdrawal Force: 3 lbs. minimum
Life Cycle: 30,000
MATERIAL
Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy, gold plated
Switching Springs: Copper alloy, gold plated
Grounding Contacts:
SMITH CHART
(TYPICAL)
HD Series - Copper alloy, gold plated
SD Series - Copper alloy, nickel plated
NON-NORMALLED
TERMINATED
NORMALLED
TERMINATED
NORMALLED NON-NORMALLED
NON-TERMINATED NON-TERMINATED
Insulators: Thermoplastic, UL 94V-0 rated
ENVIRONMENTAL
Operating Temperature: – 40oC to 65oC
Storage Temperature: – 55oC to 85oC
Thermal Shock: Per MIL-STD-202,
Method 107
Moisture and Humidity:
Per MIL-STD-202, Method 106.
The HD Series meets SMPTE 292M
specifications for high definition video
signaling, covering a bandwidth range
from DC to 2.4GHz. The SD Series is
perfect for serial digital, with a bandwidth
from DC to 1.75GHZ.
FREQUENCY (MHz)
FREQUENCY (MHz)
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
